Pilot-scale evaporation crystallization equipment
Category:
Small Evaporator Series
Keywords:
Product Attachment:
Engineering Project:
Product Project:
- Product Description
-

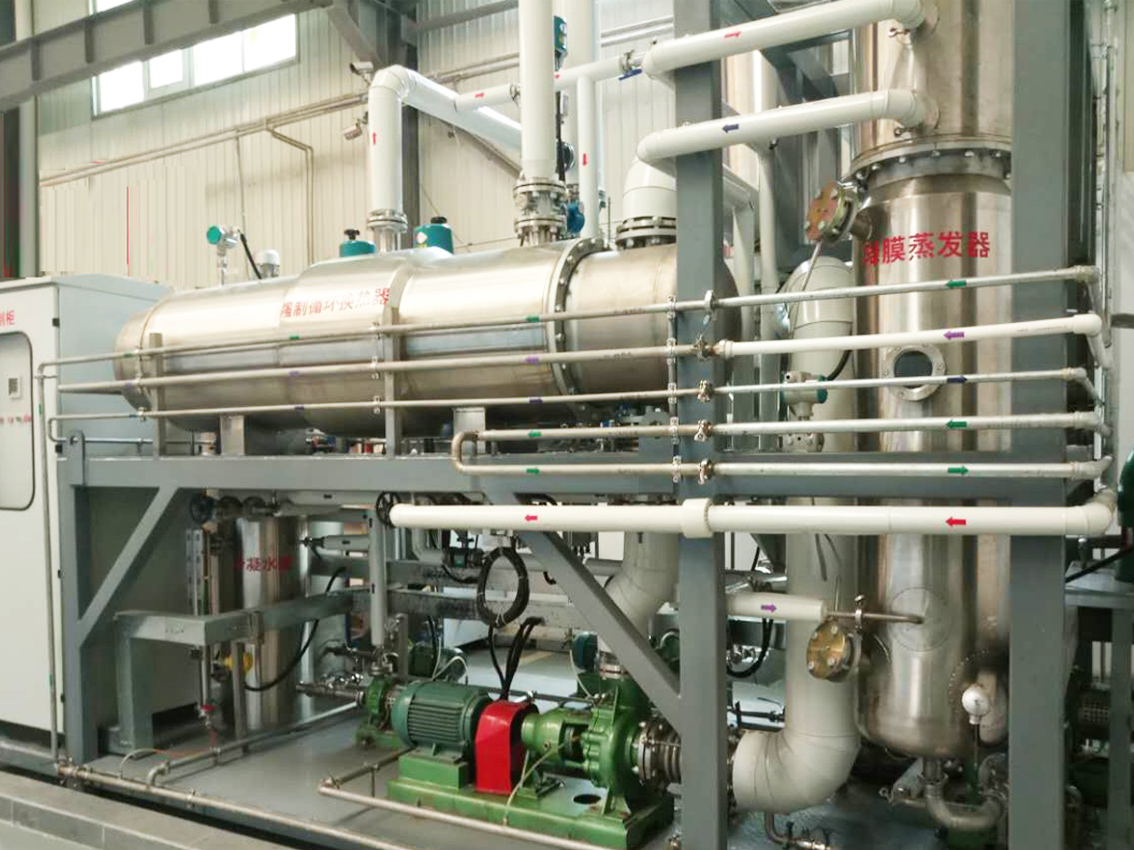

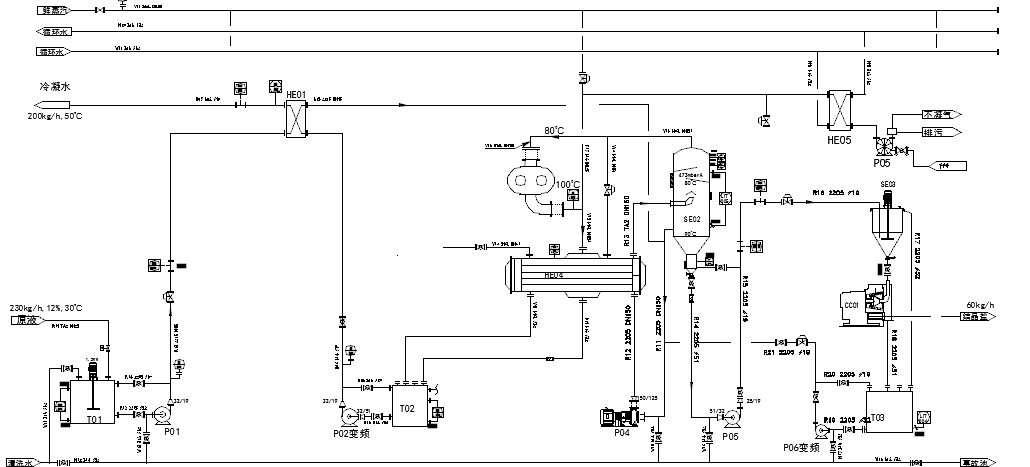

Forced Circulation Pilot Plant Equipment
Equipment Parameters
Dimensions: 6X2.3X6 meters
Weight: 5.5T
Total Power Consumption: 26Kw (excluding steam generator)
Compressor Type ( Roots type )
Flow rate: 200kg/h
Medium: Water vapor
Motor: 18.5Kw, variable frequency, Siemens
Main Process Parameters
Evaporation rate: 40kg/hr
Inlet salinity: 3％～20％
Material in contact with materials
Material: 2205
Main functions
Concentration of various industrial wastewater
Evaporation and crystallization of materials
Forced circulation heat exchanger
Heat transfer area: 20m²
Material: Titanium

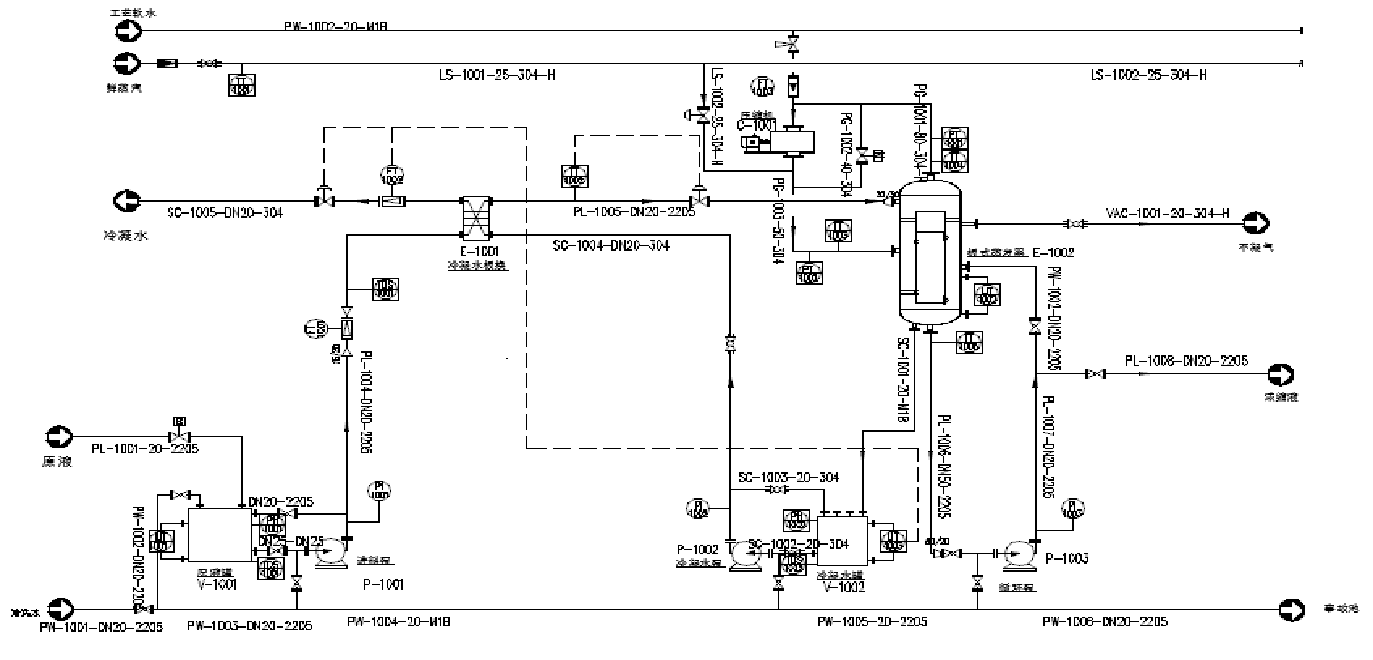

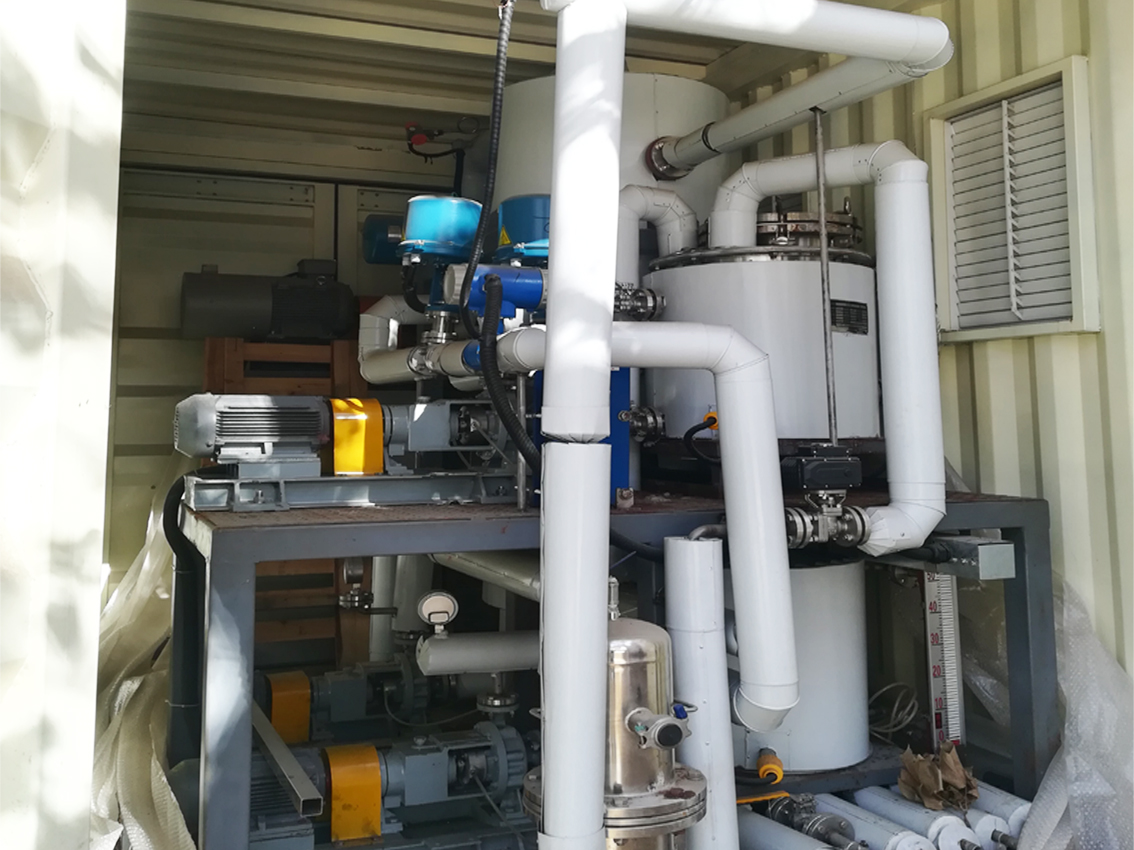

Plate type evaporation pilot plant equipment
Equipment Parameters
Dimensions: 4.5X2.5X3.5 meters
Weight: 4.5T
Total Power Consumption: 26Kw (excluding steam generator)
Compressor Type ( Roots type )
Flow rate: 200kg/h
Medium: Water vapor
Motor: 30Kw, variable frequency, Siemens
Main Process Parameters
Evaporation rate: 120kg/hr
Inlet salinity: 3％～10％
Material
Material in contact with material: 2205
Raw material side material: 2205
Heat exchanger, preheater material: Titanium
Condenser side material, etc.: 304
Main functions
Concentration of various industrial wastewater
Plate heat exchanger
Area: 7m²

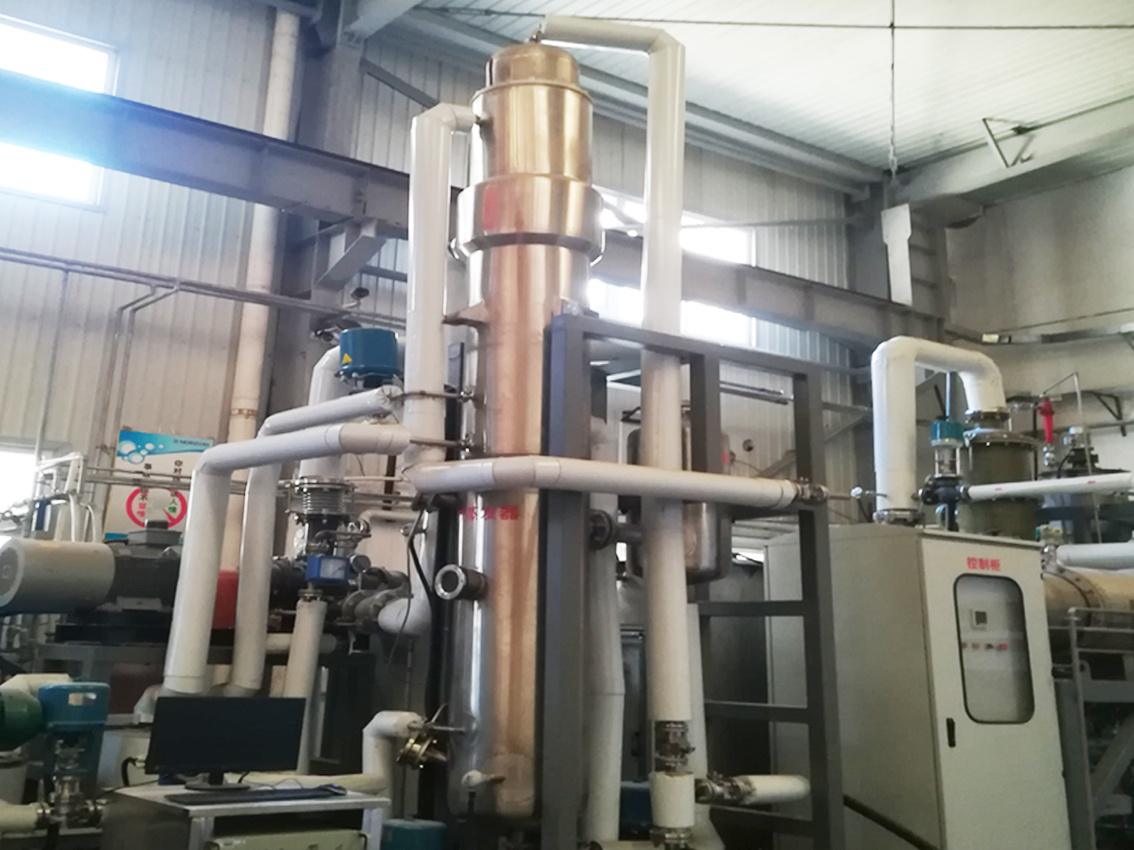

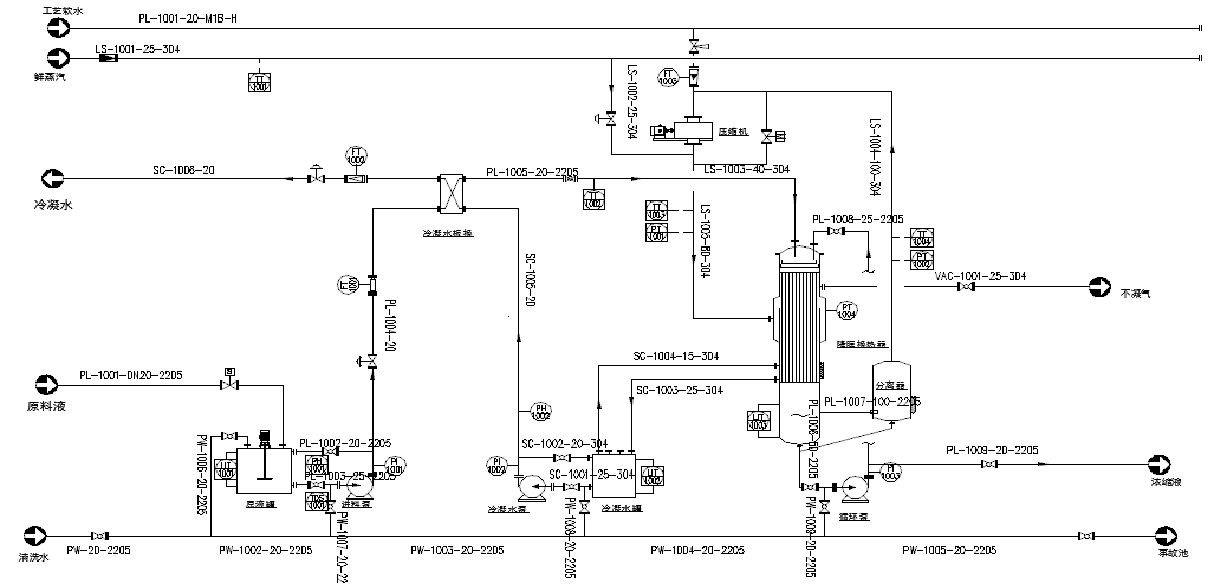

Tube falling film evaporation pilot plant equipment
Equipment Parameters
Dimensions: 4X2.5X7 meters
Weight: 4.5T
Total power consumption: 25Kw (excluding steam generator)
Compressor Type ( Roots type )
Flow rate: 200kg/h
Medium: Water vapor
Motor: 18.5Kw, variable frequency, Siemens
Main Process Parameters
Evaporation rate: 120kg/hr
Inlet salinity: 3％～20％
Material
Material in contact with material: 2205
Circulation pump: 2205, 30m³/h
Main functions
Concentration of various industrial wastewater
Falling film evaporator
Heat transfer area: 10m²
Material: Titanium
